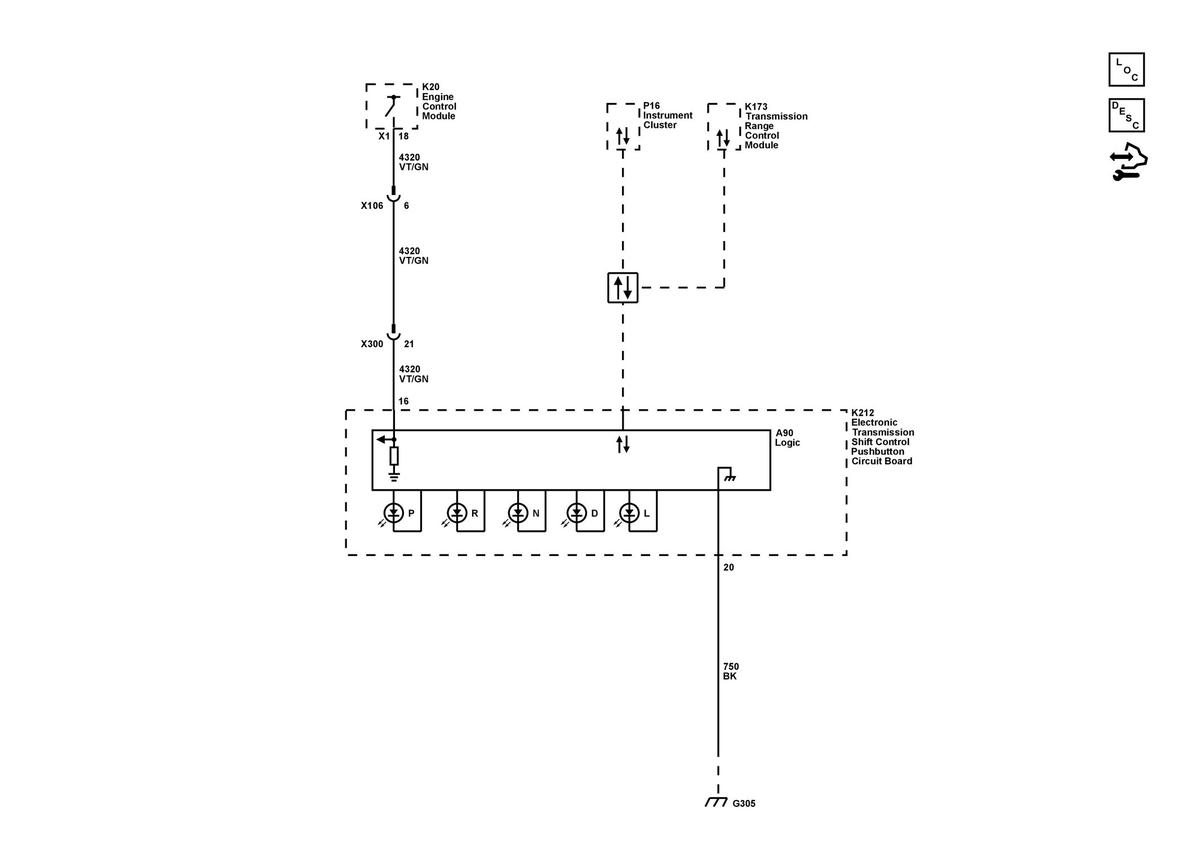

Home >> Chevrolet >> 2022 >> Bolt EV >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Displays And Gauges >> Schematic Wiring Diagrams >> Driver Information System WiringSchematics >> Electronic Shift Position Indicator
