Section 5 (Engine Controls And Fuel - 2.0L - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

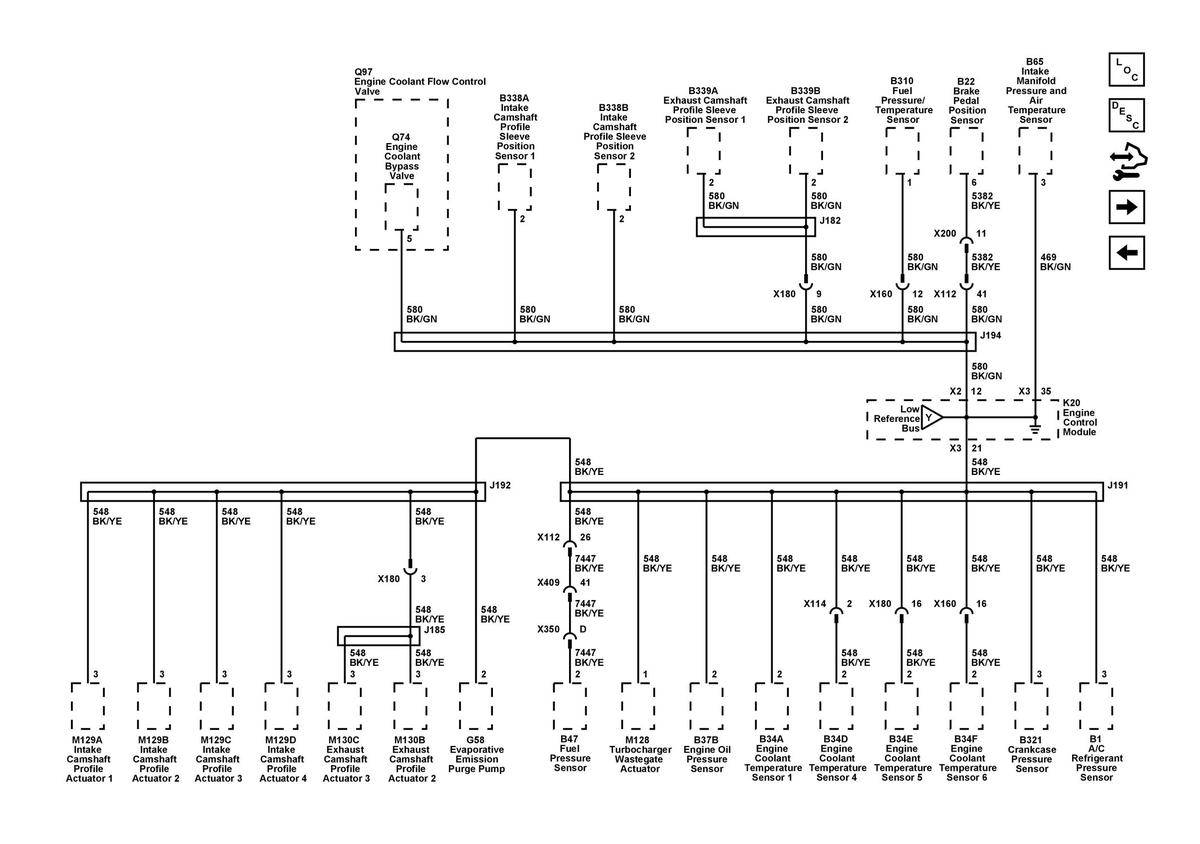

Low Reference Bus (2 of 2) (LSY)
Low Reference Bus (2 of 2) (LSY)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
