Engine Block Assemble Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5028823Courtesy of GENERAL MOTORS COMPANY

    Oil Flow Check Valve Seal (1) - Install NEW

  2. Oil Flow Check Valve (2) - Install
  3. GM5028819Courtesy of GENERAL MOTORS COMPANY

    Piston Oil Nozzle (1) - Install [4x]

    4. CAUTION:

    Fastener Caution

  4. Piston Oil Nozzle Bolt (2) - Install and tighten [4x] - Fastener Specifications
  5. GM5028818Courtesy of GENERAL MOTORS COMPANY

    Cylinder Head Locating Pin (1) - Install [2x] - use KM-266  Remover/ Installer

  6. GM5028816Courtesy of GENERAL MOTORS COMPANY

    Engine Block Core Hole Plug (1) - Install

  7. Guide Pin (2, 3) - Install [4x]

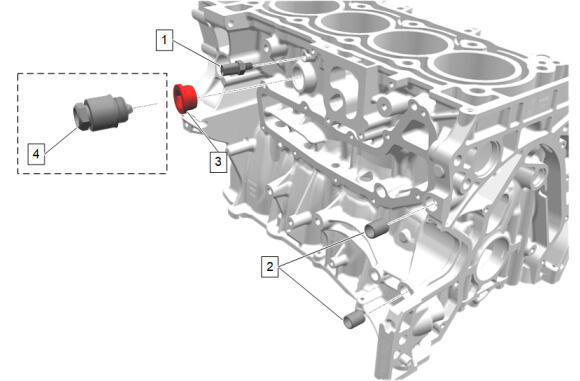

  8. GM5926602Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Coolant Temperature Sensor (1) - Install and tighten - Fastener Specifications

  9. Starter Locating Pin (2) - Install [2x] - use J-26269  Remover/ Installer
  10. {with K05} Install and tighten the engine coolant heater (4). Fastener Specifications
  11. {without K05} Install and tighten the engine coolant heater hole plug (3). Fastener Specifications
