Preliminary Procedures
- Remove the front bumper fascia. Front Bumper Fascia Removal and Installation
- Drain the cooling system. Cooling System Draining and Filling (Static LGX) , or Cooling System Draining and Filling (GE 47716 LGX)
|

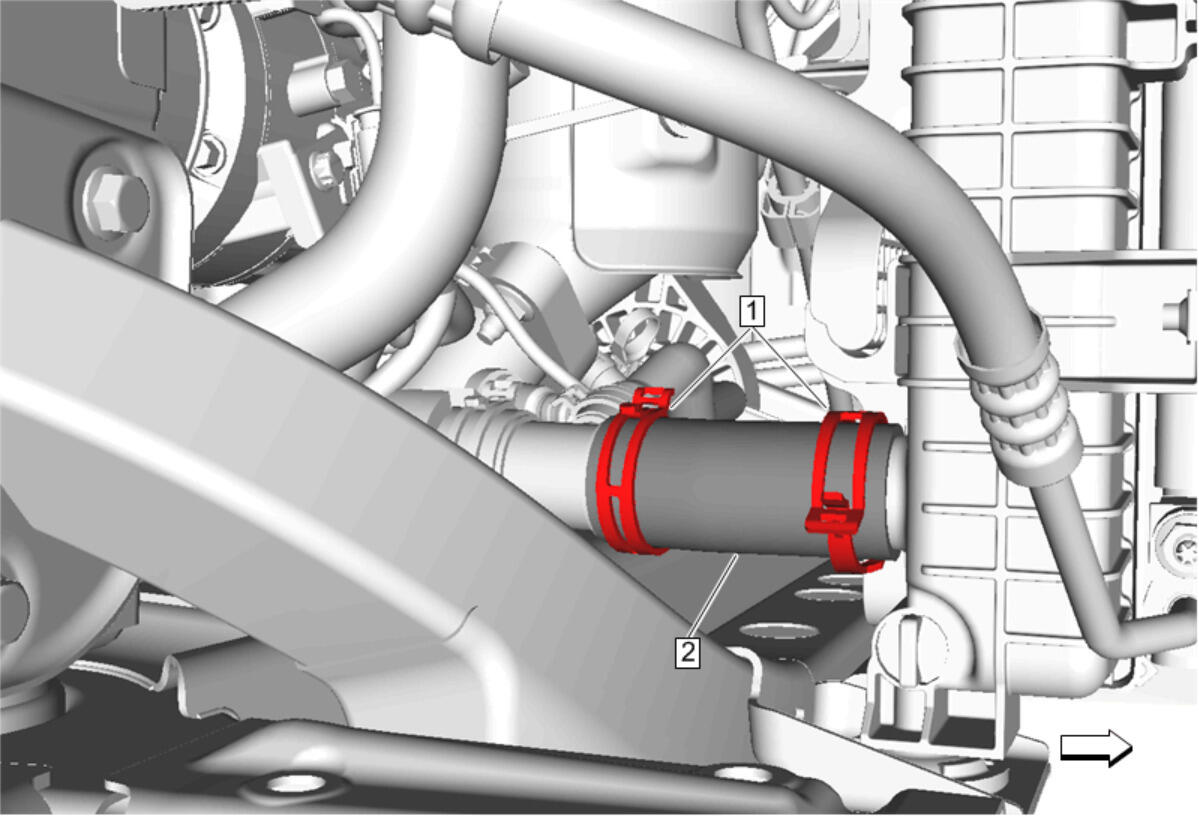

| 1 |
Radiator Outlet Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type |
| 2 |
Radiator Outlet Hose Procedure
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static LGX) , or Cooling System Draining and Filling (GE 47716 LGX)
- Start the engine and check for coolant leaks.
|
