X611 Front Side Door Wiring Harness - Passenger to Sideview Camera - Right (UV2)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

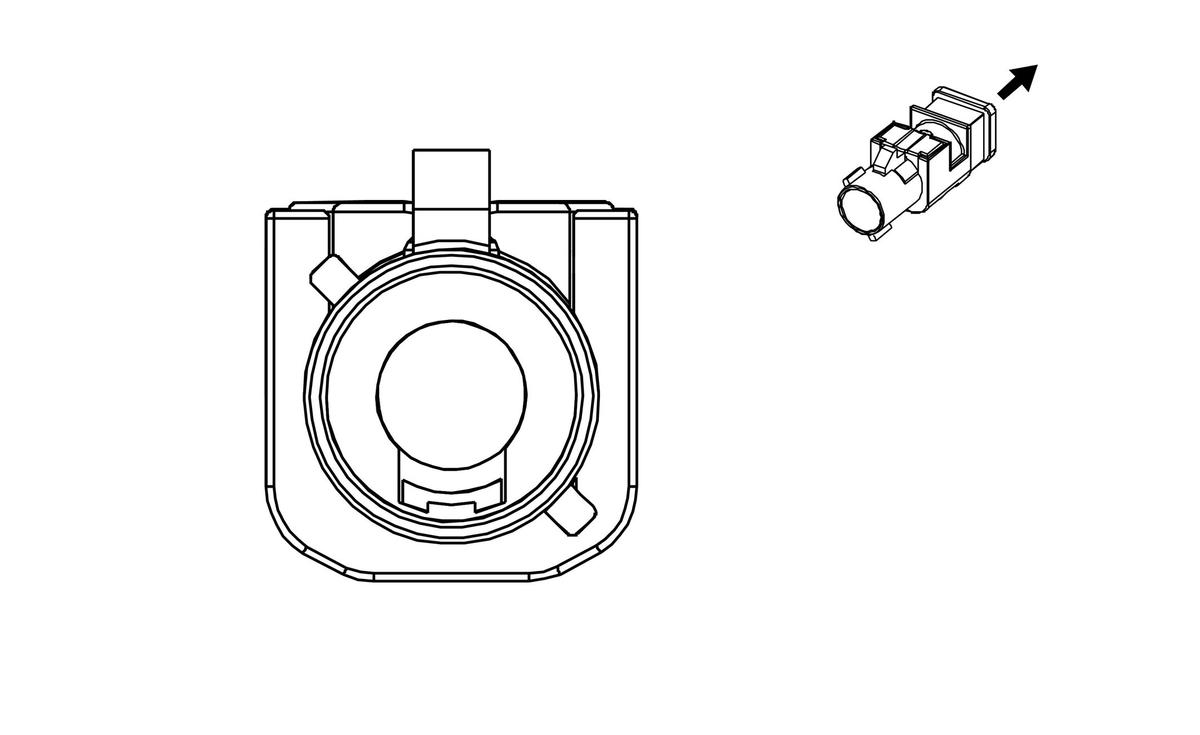

Connector Part Information
- Harness Type: Front Side Door Wiring Harness - Passenger COAX
- OEM Connector: 3FA1-NLSJ-C01W6
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way F Coax Type (RD)
|
Connector Part Information
- Harness Type: Sideview Camera - Right COAX
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way M (RD)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
Coax Cable |
- |
I |
- |
Right Side Vision Camera Coaxial Video Signal |
- |
- |
Coax Cable |
- |
I |
- |
