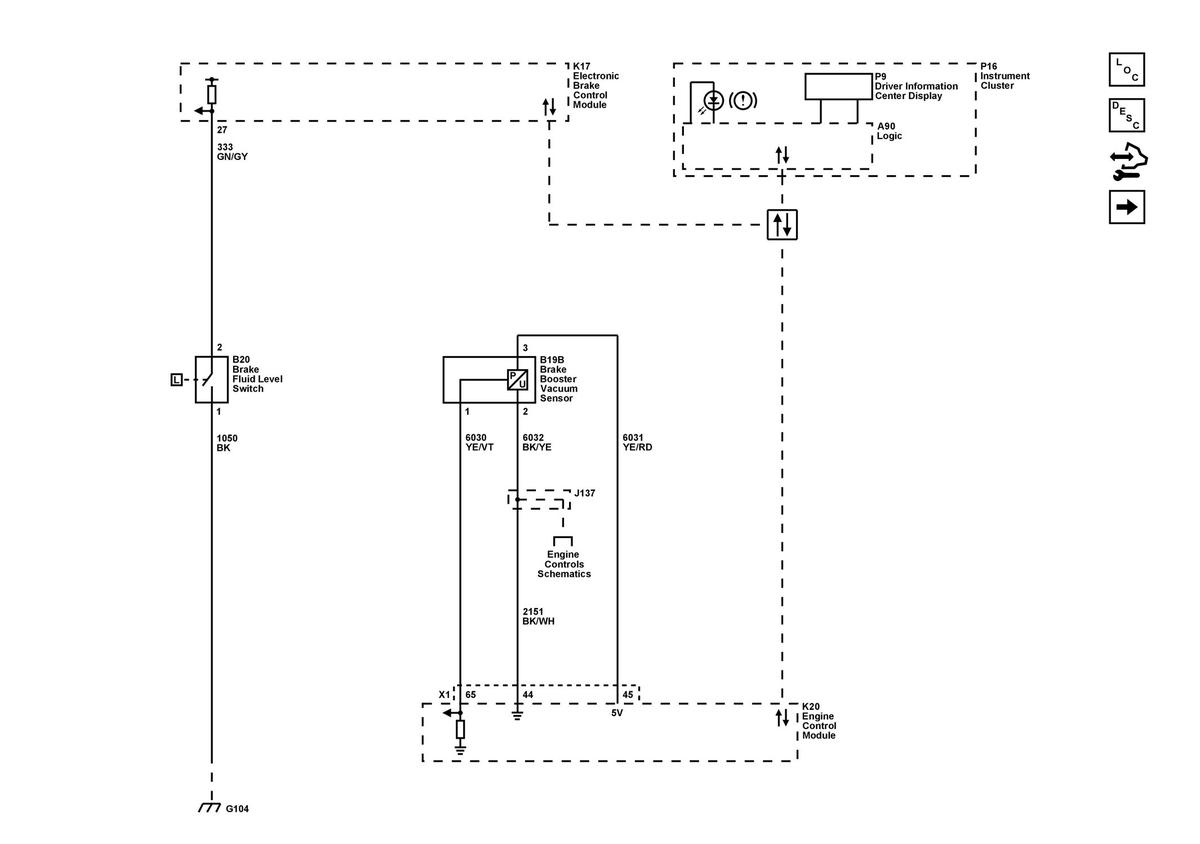

Home >> Chevrolet >> 2022 >> Blazer RS, 4WD >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brakes >> Schematic Wiring Diagrams >> Hydraulic Brake Wiring Schematics >> Hydraulic Brakes (LGX)
