Front Seat Cushion Frame Replacement (Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Front Seat Cushion Cover and Pad Replacement

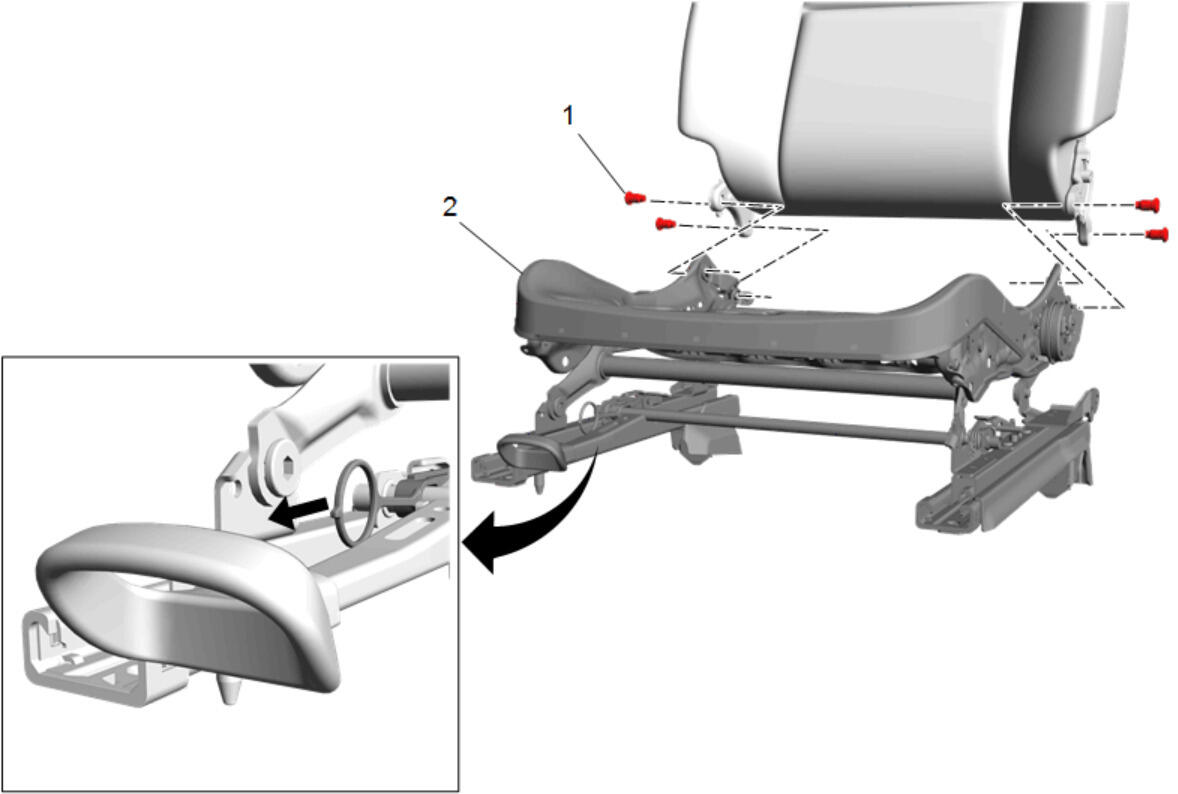

1	Driver or Passenger Seat Back Frame Fastener [4x] NOTE: Refer to the procedure link for torque specification. Procedure Install the bolts on both sides. Front Seat Back Frame Replacement
2	Driver or Passenger Seat Cushion Frame NOTE: When replacing the seat cushion frame, ensure the locking retainer is pulled forward to unlock the seat track. Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

WARNING:

Driver or Passenger Seat Back Frame Fastener [4x]

NOTE:

Refer to the procedure link for torque specification.

Procedure
Install the bolts on both sides. Front Seat Back Frame Replacement

Driver or Passenger Seat Cushion Frame

NOTE:

When replacing the seat cushion frame, ensure the locking retainer is pulled forward to unlock the seat track.

Procedure
