Luggage Carrier Side Rail Replacement

Courtesy of GENERAL MOTORS COMPANY

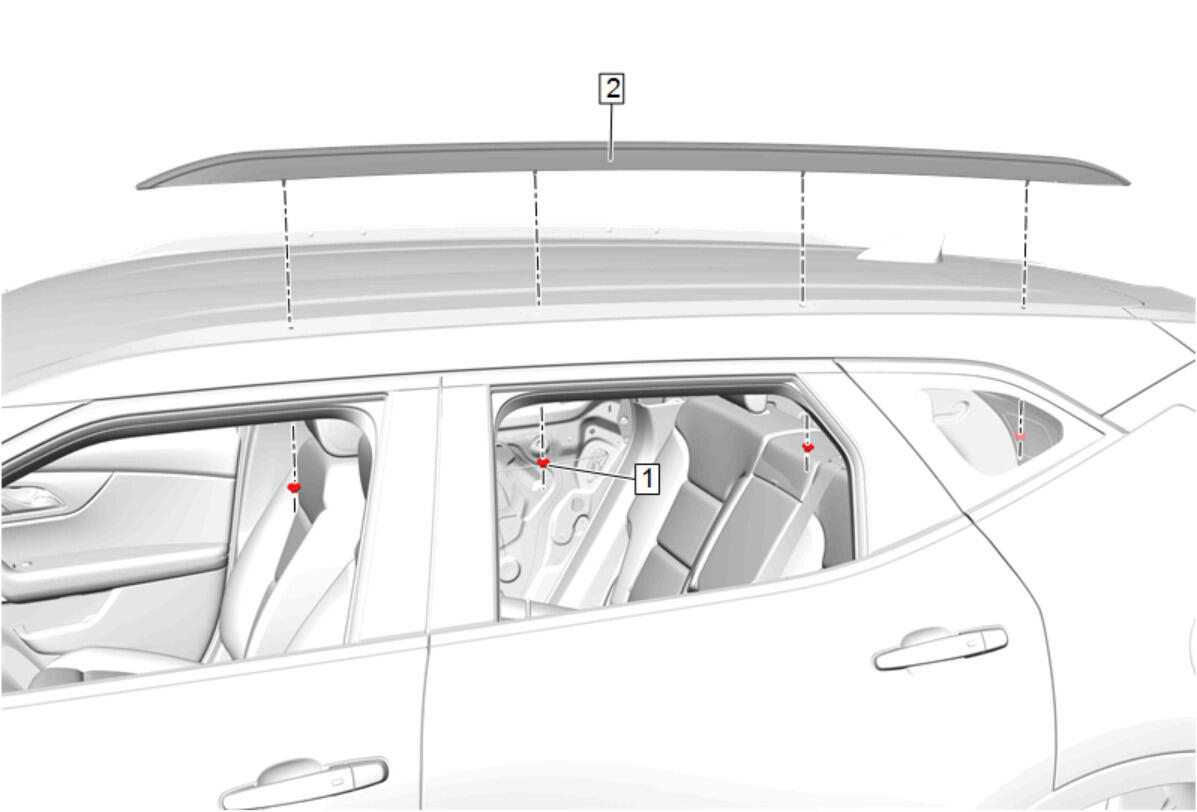

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)
1	Luggage Carrier Side Rail Nut [4x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Luggage Carrier Side Rail Procedure Transfer components as necessary. Water test the vehicle for leaks before installing the headlining trim panel.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (With C3U) , or Headlining Trim Panel Replacement (Without C3U)

Luggage Carrier Side Rail Nut [4x]

CAUTION:

Tighten
9 N.m (80 lb in)

Luggage Carrier Side Rail

Procedure
