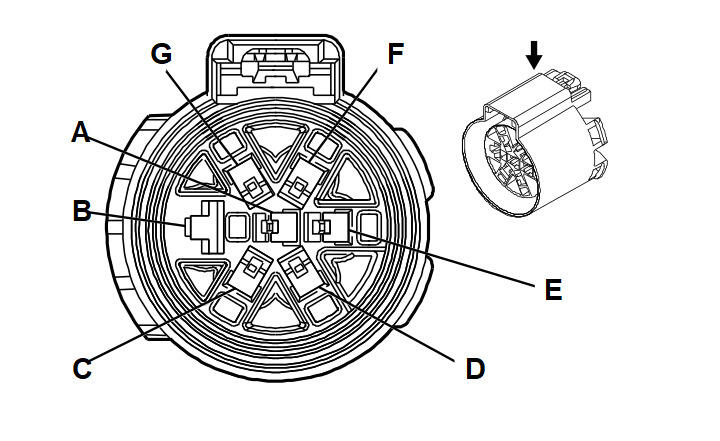

X88 Trailer Connector
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Trailer Tow
- OEM Connector: 13583072
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F 280, 630 Metri-Pack Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| II |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.75 |
WH / GN |
1624 |
Trailer Backup Lamp Control |
II |
V92 |
| B |
5 |
BK |
22 |
Trailer Ground |
I |
V92 |
| C |
2.5 |
BU |
47 |
Trailer Auxiliary Control |
II |
V92 |
| D |
0.75 |
GN / BN |
319 |
Right Rear Trailer Stop/Turn Lamp Control |
II |
V92 |
| E |
3 |
RD / GN |
742 |
Battery Positive Voltage |
II |
V92 |
| F |
1.5 |
GY / BN |
2109 |
Trailer Park Lamp Control |
II |
V92 |
| G |
0.75 |
YE / BU |
318 |
Left Rear Trailer Stop/Turn Lamp Control |
II |
V92 |
