X81 Accessory Power Receptacle - 110V AC X2 (KI6)
 Courtesy of GENERAL MOTORS COMPANY
|

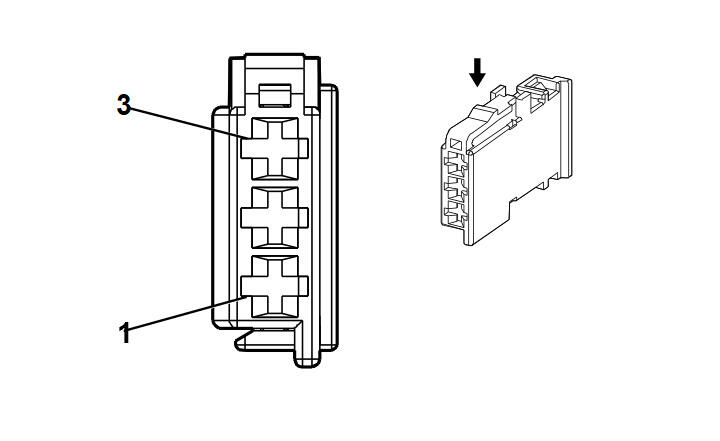

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 13279746
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.6 Timer Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU / BN |
6807 |
DC/AC Inverter Control |
I |
KI6 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.75 |
RD |
5684 |
120V AC Phase B |
I |
KI6 |
