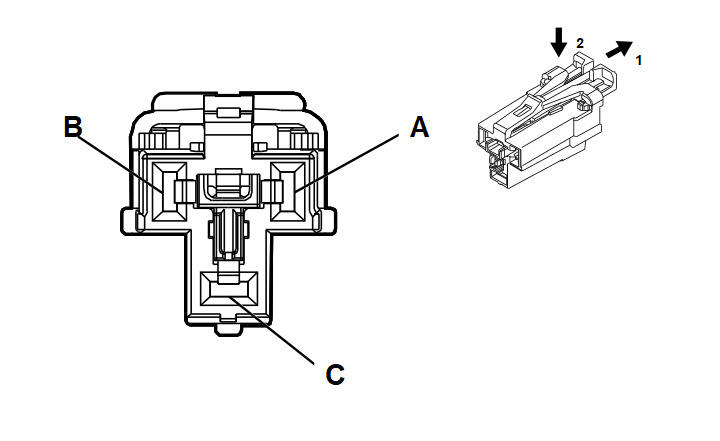

X80F Accessory Power Receptacle - Front (-DUJ)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13519709
- Service Connector: 19369281
- Description: 3-Way F 2.8 APEX Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1.5 |
VT |
1001 |
Retained Accessory Power Ignition Voltage |
I |
-DUJ |
| B |
- |
- |
- |
Not Occupied |
- |
- |
| C |
1.5 |
BK |
1650 |
Ground |
I |
-DUJ |
