T8F Ignition Coil 6
 Courtesy of GENERAL MOTORS COMPANY
|

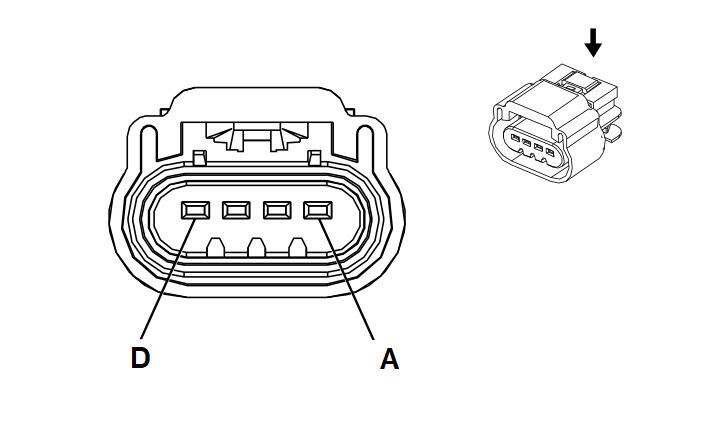

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13587575
- Service Connector: 19368715
- Description: 4-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
1 |
BK |
450 |
Ground |
I |
- |
| B |
0.5 |
BK / GY |
2130 |
Ignition Control Low Reference Bank 2 |
I |
- |
| C |
0.5 |
BN / BU |
2126 |
Ignition Control 6 |
I |
- |
| D |
1 |
VT / BU |
5292 |
Powertrain Main Relay Fused Supply Voltage 3 |
I |
- |
