T3 Audio Amplifier X4 (UQA)
 Courtesy of GENERAL MOTORS COMPANY
|

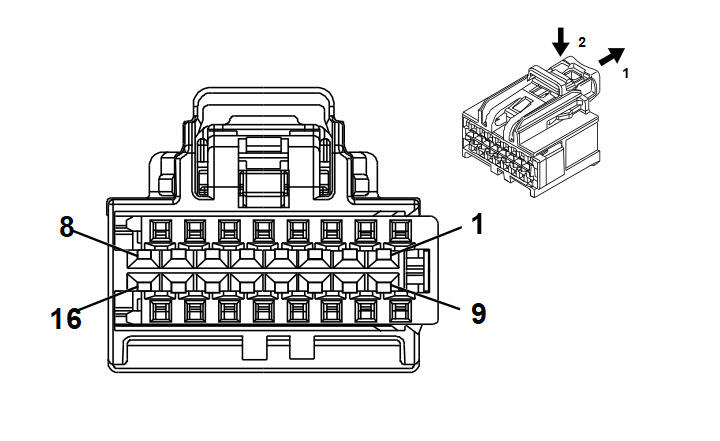

Connector Part Information
- Harness Type: Body
- OEM Connector: 13519740
- Service Connector: 13519740
- Description: 16-Way F 0.64 OCS Series (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
84619127 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
GY / BK |
7215 |
Ethernet Bus 6 [+] |
I |
UQA+ (IOS/IOU) |
| 4 |
0.35 |
BN / BK |
7214 |
Ethernet Bus 6 [-] |
I |
UQA+ (IOS/IOU) |
| 5 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
