T3 Audio Amplifier X2 (UQA)
 Courtesy of GENERAL MOTORS COMPANY
|

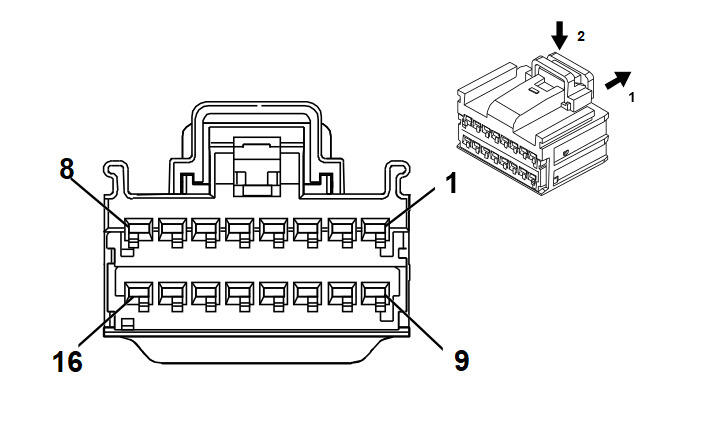

Connector Part Information
- Harness Type: Body
- OEM Connector: 13591061
- Service Connector: 13591061
- Description: 16-Way F 1.5 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
84757974 |
J-35616-14 (GN) |
J-38125-557 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.75 |
GY / BU |
1955 |
Right Rear Midrange Speaker [-] Control |
I |
UQA |
| 3 |
1 |
YE / WH |
1860 |
Front Center Speaker [+] Control |
I |
UQA |
| 4 |
1 |
WH |
46 |
Right Rear Speaker [+] Control |
I |
UQA |
| 5 |
1 |
GN |
199 |
Left Rear Speaker [+] Control |
I |
UQA |
| 6 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.75 |
YE / GN |
1855 |
Right Rear Midrange Speaker [+] Control |
I |
UQA |
| 11 |
1 |
BU / YE |
1960 |
Front Center Speaker [-] Control |
I |
UQA |
| 12 |
1 |
BU / BK |
115 |
Right Rear Speaker [-] Control |
I |
UQA |
| 13 |
1 |
GN / BK |
116 |
Left Rear Speaker [-] Control |
I |
UQA |
| 14 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
