T3 Audio Amplifier X1 (UQA)
 Courtesy of GENERAL MOTORS COMPANY
|

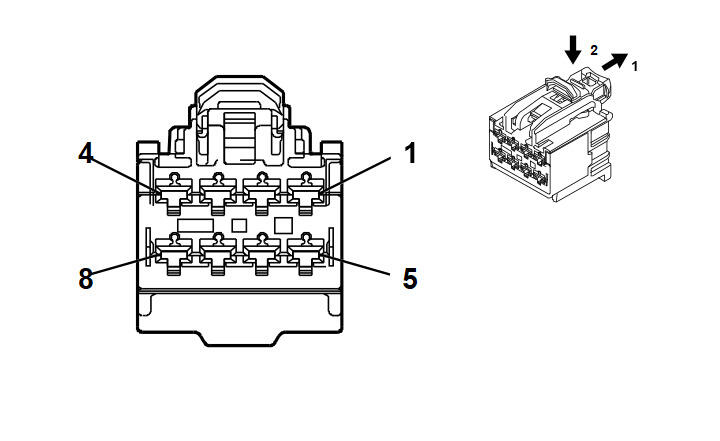

Connector Part Information
- Harness Type: Body
- OEM Connector: 13507063
- Service Connector: 19369366
- Description: 8-Way F 2.8 OCS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-4A (PU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BU / GY |
346 |
Left/Rear Subwoofer [+] Control |
I |
UQA |
| 2 |
2 |
YE |
200 |
Right Front Speaker 1 [+] Control |
I |
UQA |
| 3 |
2 |
BU |
201 |
Left Front Speaker 1 [+] Control |
I |
UQA |
| 4 |
2.5 |
RD / YE |
3740 |
Battery Positive Voltage |
I |
UQA+ (IOS/IOU) |
| 5 |
1 |
GN / BK |
1794 |
Left/Rear Subwoofer [-] Control |
I |
UQA |
| 6 |
2 |
YE / BK |
117 |
Right Front Speaker [-] Control 1 |
I |
UQA |
| 7 |
2 |
BN / BU |
118 |
Left Front Speaker [-] Control 1 |
I |
UQA |
| 8 |
2.5 |
BK |
1550 |
Ground |
I |
UQA+ (IOS/IOU) |
