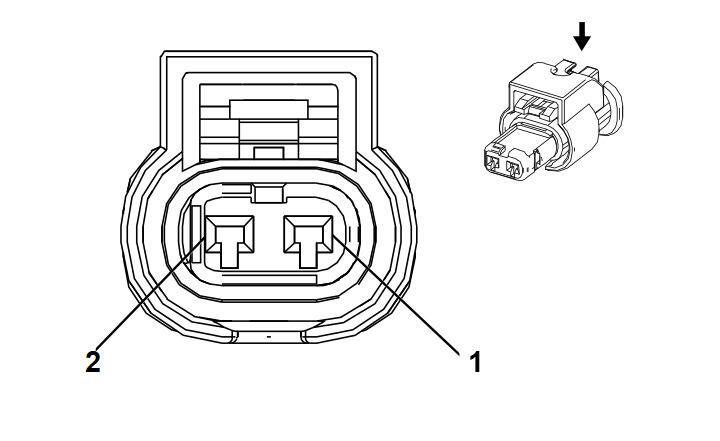

T10G Keyless Entry Antenna - Rear Fascia
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13586144
- Service Connector: 19366843
- Description: 2-Way F 1.2 MCP Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN / GN |
3568 |
Rear Closure Passive Entry Antenna High Signal |
I |
(ATH/ATS) |
| 2 |
0.35 |
GN / GY |
3569 |
Rear Closure Passive Entry Antenna Low Signal |
I |
(ATH/ATS) |
