S65P Seat Lumbar Support Switch - Passenger (AT9)
 Courtesy of GENERAL MOTORS COMPANY
|

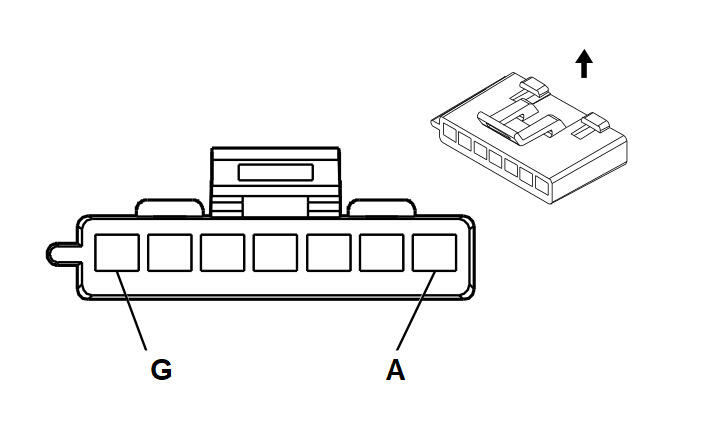

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 12052854
- Service Connector: Service by Harness - See Part Catalog
- Description: 7-Way F 280 Metri-Pack Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
- |
- |
- |
Not Occupied |
- |
- |
| B |
- |
VT |
210 |
Passenger Seat Lumbar Support Motor Backward Control |
I |
- |
| C |
- |
BU |
211 |
Passenger Seat Lumbar Support Motor Forward Control |
I |
- |
| D |
- |
- |
- |
Not Occupied |
- |
- |
| E |
- |
BK |
750 |
Ground |
I |
- |
| F |
- |
- |
- |
Not Occupied |
- |
- |
| G |
- |
RD / BN |
1440 |
Battery Positive Voltage |
I |
- |
