S26 Hazard Warning Switch
 Courtesy of GENERAL MOTORS COMPANY
|

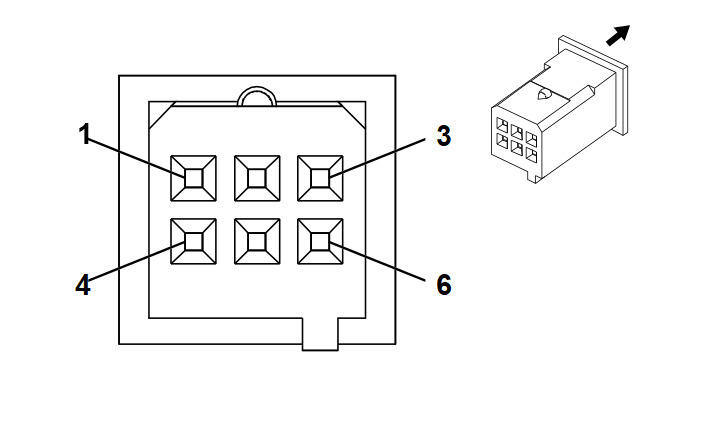

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13225892
- Service Connector: 19329483
- Description: 6-Way F 0.64 Micro-Quadlock Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN / WH |
111 |
Hazard Warning Switch Signal |
I |
- |
| 2 |
0.35 |
BK |
1650 |
Ground |
I |
- |
| 3 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control 1 |
I |
- |
