Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
 Courtesy of GENERAL MOTORS COMPANY
|

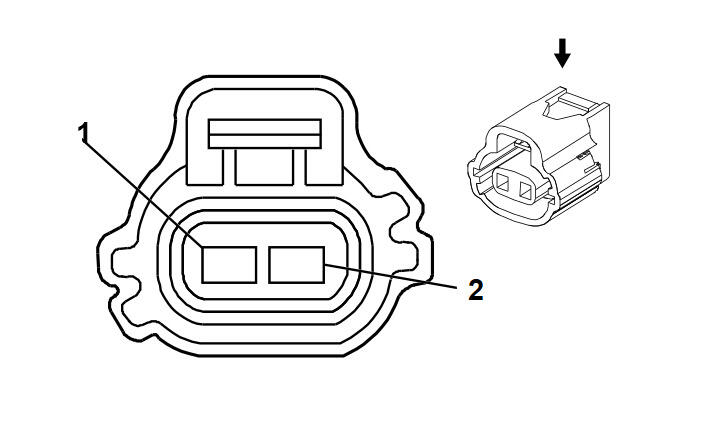

Connector Part Information
- Harness Type: Engine
- OEM Connector: 89047244
- Service Connector: 86778122
- Description: 2-Way F 090 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-18 (BK) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
VT / BN |
5284 |
Intake Camshaft Position Actuator Solenoid Valve 1 |
I |
- |
| 2 |
0.5 |
BK / BN |
6753 |
Camshaft Position Actuator Solenoid Valve W Low Reference |
I |
- |
