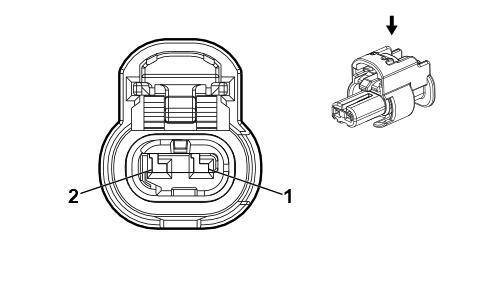

Q46 A/C Compressor Solenoid Valve
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13512366
- Service Connector: 19366843
- Description: 2-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BU / YE |
7574 |
A/C Compressor Solenoid Valve Control |
I |
- |
| 2 |
0.75 |
BU / BN |
7573 |
A/C Compressor Solenoid Valve Control |
I |
- |
