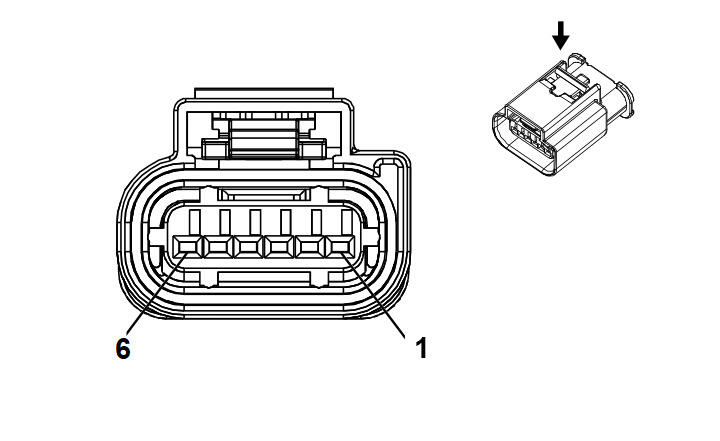

Q38 Throttle Body
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 13507087
- Service Connector: 19352911
- Description: 6-Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
581 |
Throttle Actuator Open Control |
I |
- |
| 2 |
0.5 |
BN / WH |
582 |
Throttle Actuator Close Control |
I |
- |
| 3 |
0.5 |
BU / WH |
3630 |
Throttle Position Sensor SENT 1 Signal |
I |
- |
| 4 |
0.5 |
BK / BN |
2752 |
Throttle Position Sensor Low Reference |
I |
- |
| 5 |
0.5 |
BN / RD |
2701 |
Throttle Position Sensor 5V Reference |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
