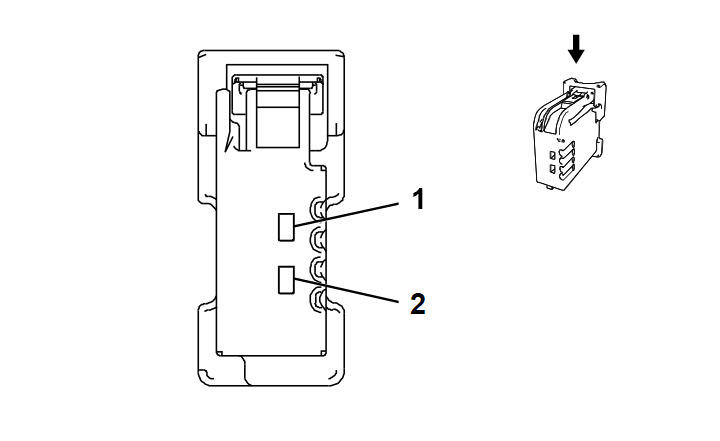

P19W Speaker - Right Instrument Panel (UQF)

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Instrument Panel OEM Connector: 19168545 Service Connector: 13505908 Description: 2-Way F 1.5 Series (GN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-14 (GN)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75 1	YE / BK YE / BK	117 117	Right Front Speaker [-] Control 1 Right Front Speaker [-] Control 1	I I	IOR+UQF UQF+ (IOS/IOU)
2	0.75 1	YE YE	200 200	Right Front Speaker 1 [+] Control Right Front Speaker 1 [+] Control	I I	IOR+UQF UQF+ (IOS/IOU)
