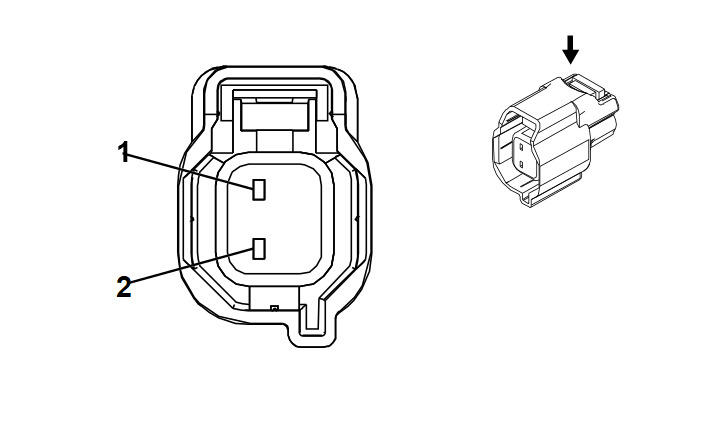

P19AM Speaker - Right Rear Door (UQA)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Right Rear Door
- OEM Connector: 13503509
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.5 Series, Sealed (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
BU / BK |
115 |
Right Rear Speaker [-] Control |
I |
UQA |
| 2 |
1 |
WH |
46 |
Right Rear Speaker [+] Control |
I |
UQA |
