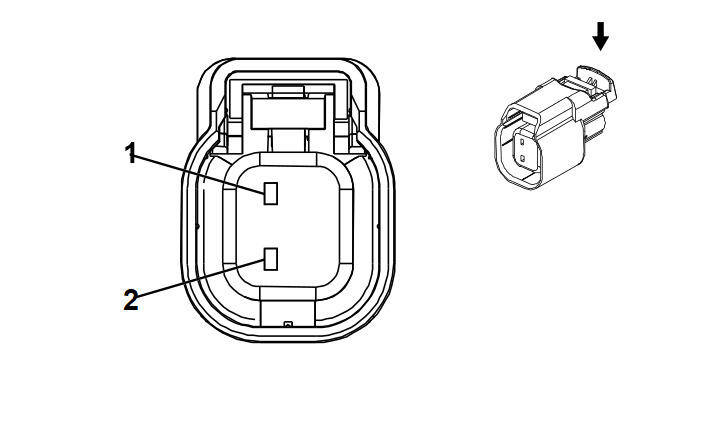

P12R Horn - Right
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-14 (GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1.5 | BK | 250 | Ground | I | - |
| 2 | 1.5 | BN / GY | 29 | Horn Control | I | - |
