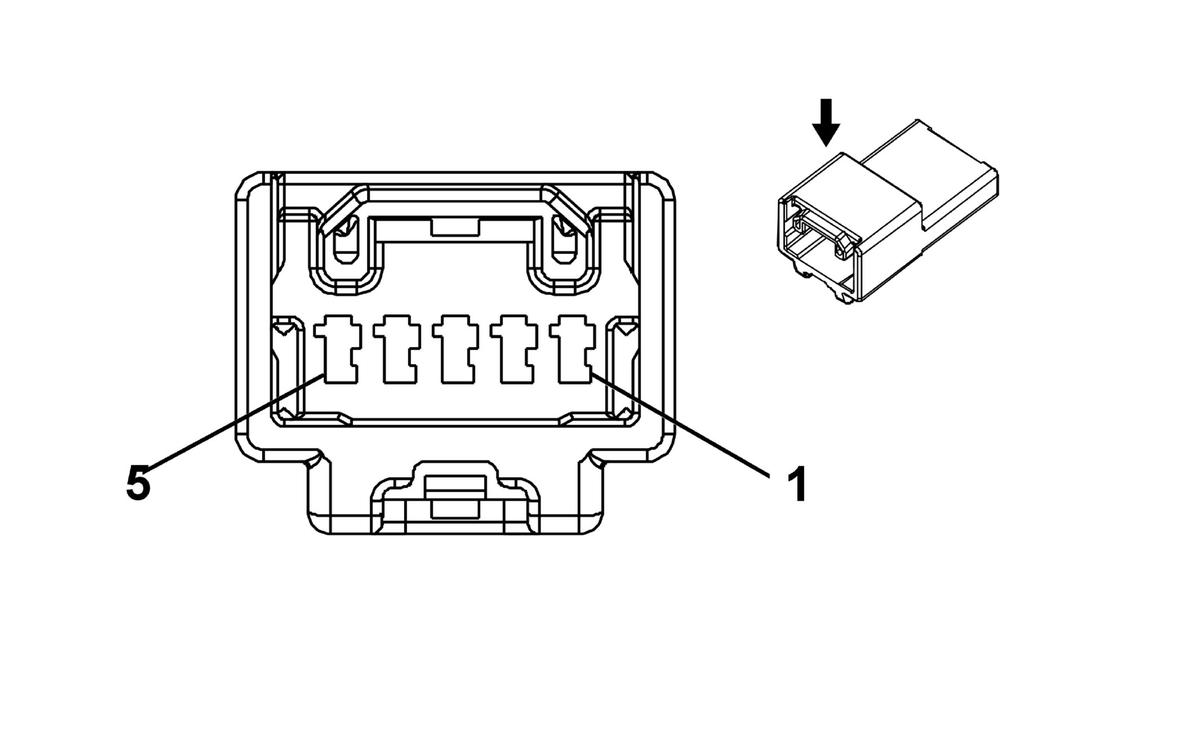

M73D Seat Blower Motor - Passenger Cushion (KA1)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 7282-5830
- Service Connector: Service by Harness - See Part Catalog
- Description: 5-Way M 040 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
VT / BK |
739 |
Run/Crank Ignition 1 Voltage |
I |
- |
| 2 |
- |
VT / WH |
5908 |
Passenger Seat Blower Motor Control 1 |
I |
- |
| 3 |
- |
BK |
650 |
Ground |
I |
- |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
