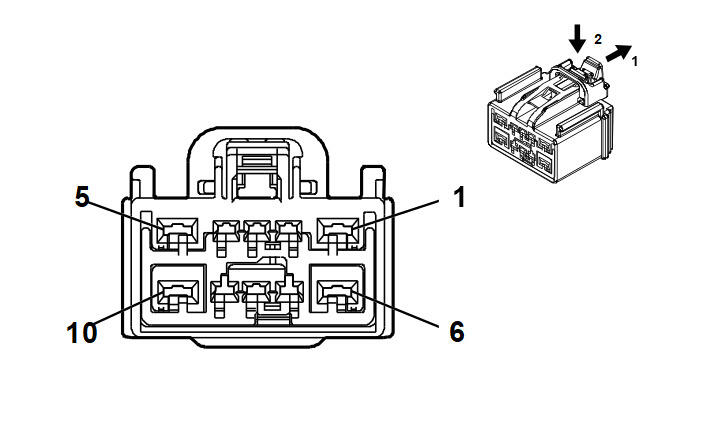

M69 Sunroof Motor (C3U)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 13518747
- Service Connector: 13518747
- Description: 10-Way F 1.5, 2.8 Kaizen Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
13575832 |
J-35616-14 (GN) |
J-38125-557 |
| II |
19300449 |
J-35616-4A (PU) |
J-38125-11A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.35 |
BK / GY |
128 |
Sunroof Switch Low Reference |
I |
C3U |
| 4 |
0.35 |
GN / BN |
6132 |
Body Control Module LIN Bus 1 |
I |
C3U |
| 5 |
2 |
BK |
1350 |
Ground |
II |
C3U |
| 6 |
2 |
RD / GY |
3540 |
Battery Positive Voltage |
II |
C3U |
| 7 |
0.35 |
BU / VT |
5027 |
Sunroof Switch Serial Data 1 Signal |
I |
C3U |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
