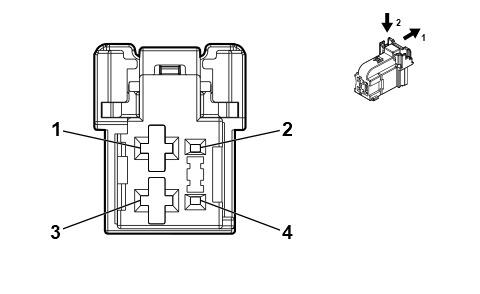

M55D Seat Rear Vertical Motor - Driver

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information Harness Type: Driver Seat OEM Connector: 2316171-1 Service Connector: Service by Harness - See Part Catalog Description: 4-Way F 0.64, 2.8 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	Not required	J-35616-35 (VT)	No Tool Required
II	Not required	J-35616-64B (LT BU)	No Tool Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	2 1.5	GY / BU GY / BU	283 283	Driver Seat Rear Vertical Motor Down Control Driver Seat Rear Vertical Motor Down Control	I I	A2X- (AAB/A45) A2X+ (AAB/A45)
2	0.35	YE / BU	568	Seat Rear Vertical Motor Position Sensor Signal	II	-
3	2 1.5	YE YE	282 282	Driver Seat Rear Vertical Motor Up Control Driver Seat Rear Vertical Motor Up Control	I I	A2X- (AAB/A45) A2X+ (AAB/A45)
4	0.5	WH / RD	3298	Seat Position Sensors High Reference 2	II	-
