K36 Inflatable Restraint Sensing and Diagnostic Module X1
 Courtesy of GENERAL MOTORS COMPANY
|

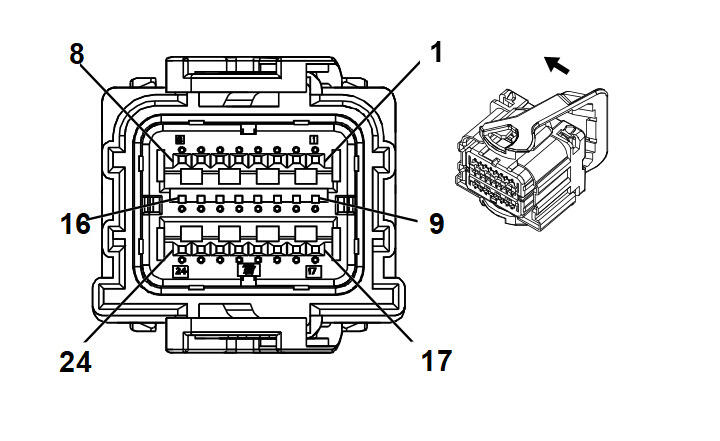

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13579298
- Service Connector: 13579297
- Description: 24-Way F 0.64 Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19328872 |
J-35616-64B (LT BU) |
J-38125-215A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG / GN |
3023 |
Steering Wheel Air Bag Stage 2 High Control |
I |
- |
| 2 |
0.5 |
WH / OG |
3022 |
Steering Wheel Air Bag Stage 2 Low Control |
I |
- |
| 3 |
0.5 |
BN / OG |
3020 |
Steering Wheel Air Bag Stage 1 Low Control |
I |
- |
| 4 |
0.5 |
OG / VT |
3021 |
Steering Wheel Air Bag Stage 1 High Control |
I |
- |
| 5 |
0.5 |
YE / OG |
3025 |
Passenger Instrument Panel Air Bag Stage 1 High Control |
I |
- |
| 6 |
0.5 |
OG / WH |
3024 |
Passenger Instrument Panel Air Bag Stage 1 Low Control |
I |
- |
| 7 |
0.5 |
OG / VT |
3026 |
Passenger Instrument Panel Air Bag Stage 2 Low Control |
I |
- |
| 8 |
0.5 |
GY / OG |
3027 |
Passenger Instrument Panel Air Bag Stage 2 High Control |
I |
- |
| 9 |
0.5 |
RD / GN |
4440 |
Battery Positive Voltage |
I |
- |
| 10 |
0.35 |
VT / WH |
5234 |
Passenger Seat Belt Indicator Control |
I |
- |
| 11 |
0.35 |
BU |
2307 |
Passenger Air Bag On Indicator Control |
I |
- |
| 12 |
0.35 |
GN |
2308 |
Passenger Air Bag Off Indicator Control |
I |
- |
| 13 - 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
WH / BU |
5986 |
Serial Data Communication Enable |
I |
- |
| 18 |
0.35 |
BU / YE |
6105 |
High Speed GMLAN Serial Data [+] 2 |
I |
- |
| 19 |
0.5 |
BK / WH |
1251 |
Signal Ground |
I |
- |
| 20 |
0.35 |
WH / BK |
6106 |
High Speed GMLAN Serial Data [-] 2 |
I |
- |
| 21 - 24 |
- |
- |
- |
Not Occupied |
- |
- |
