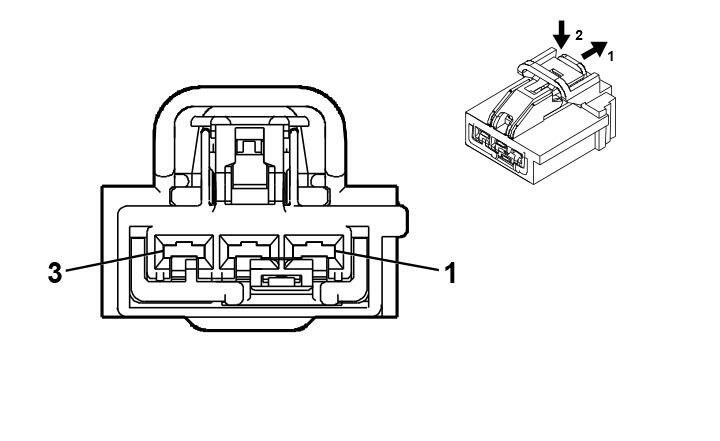

M45 Rear Wiper Motor
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 13522993
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 2.8 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-64B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
RD / YE |
3040 |
Battery Positive Voltage |
I |
- |
| 2 |
0.75 |
BK |
1350 |
Ground |
I |
- |
| 3 |
0.75 |
BU |
393 |
Rear Window Wiper Motor Control |
I |
- |
