G36 Auxiliary Heater Coolant Pump
 Courtesy of GENERAL MOTORS COMPANY
|

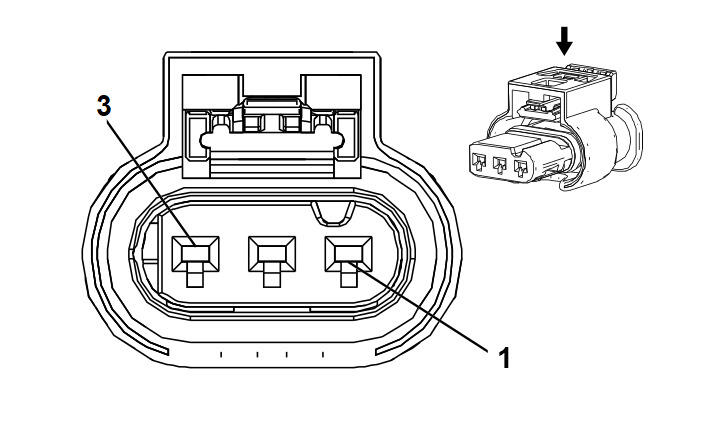

Connector Part Information
- Harness Type: Engine
- OEM Connector: 55564249
- Service Connector: 13574937
- Description: 3-Way F 1.2 Multilock Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
550 |
Ground |
I |
- |
| 2 |
0.5 |
RD / YE |
8840 |
Battery Positive Voltage |
I |
- |
| 3 |
0.5 |
GN / VT |
4621 |
Engine Control Module LIN Bus 1 |
I |
- |
