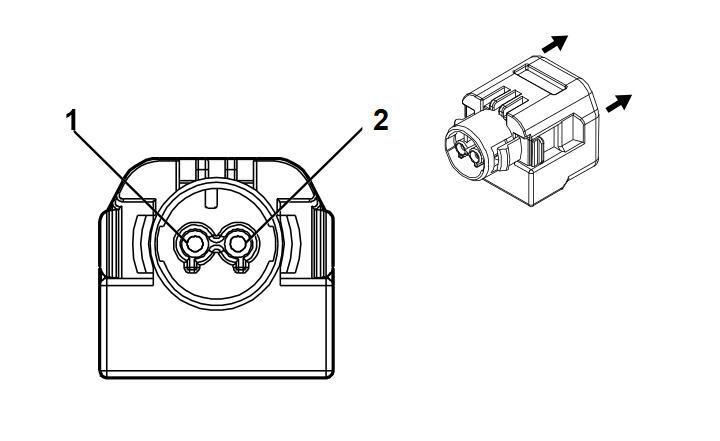

F106P Seat Side Air Bag - Passenger
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Passenger Seat Back
- OEM Connector: 13599239
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.0 Series (PK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
No Tool Required |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
OG / GY |
3066 |
Passenger Seat Side Air Bag High Control |
I |
- |
| 2 |
- |
BU / OG |
3067 |
Passenger Seat Side Air Bag Low Control |
I |
- |
