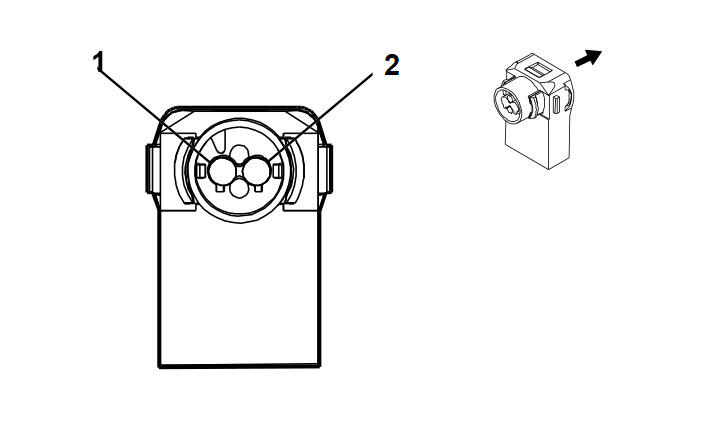

F106DA Seat Side Air Bag - Driver Inboard
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 33345783
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F ABX-5 Series (GY with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-10 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG / BN |
4207 |
Driver Inboard Seat Side Air Bag High Control |
I |
- |
| 2 |
0.5 |
GY / OG |
4208 |
Driver Inboard Seat Side Air Bag Low Control |
I |
- |
