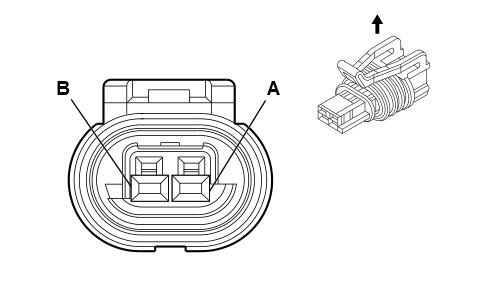

E2RF Side Marker Lamp - Right Front
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Front Fascia
- OEM Connector: 89046954
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 150 GT Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
0.5 |
GY / BN |
309 |
Right Park Lamp Control |
I |
- |
| B |
0.5 |
BK |
250 |
Ground |
I |
- |
