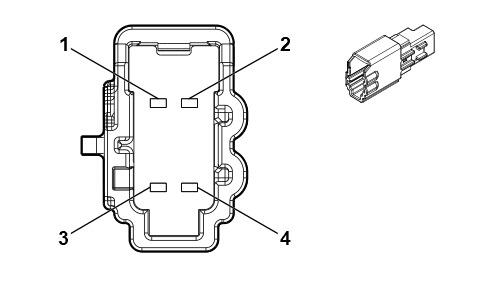

E14A Seat Heating Element - Driver Back (KA1)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 6098-9049
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2 MCON Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-17 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BN / VT |
2077 |
Driver Seat Heating Element Control |
I |
- |
| 2 |
0.35 |
BU |
2425 |
Driver Seat Back Heating Temperature Sensor Signal |
I |
- |
| 3 |
0.5 |
BK / YE |
2080 |
Driver Heated Seat Thermistor Low Reference |
I |
- |
| 4 |
0.75 |
BN / BK |
2078 |
Driver Seat Heating Element Low Reference |
I |
- |
