B280 Automatic Transmission Accumulator Solenoid Valve
 Courtesy of GENERAL MOTORS COMPANY
|

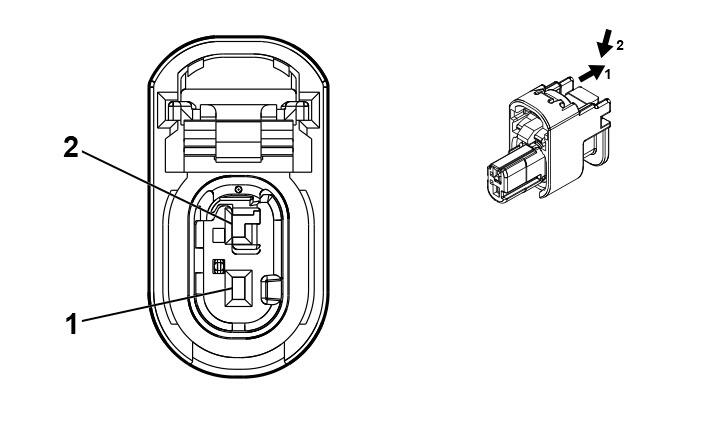

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13515613
- Service Connector: 84785110
- Description: 2-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN / GY |
6387 |
Transmission High Side Driver 1 Control |
I |
- |
| 2 |
0.5 |
YE / BK |
1223 |
Shift Solenoid Valve 2 Control |
I |
- |
