B174W Frontview Camera - Windshield (UGN)

Courtesy of GENERAL MOTORS COMPANY

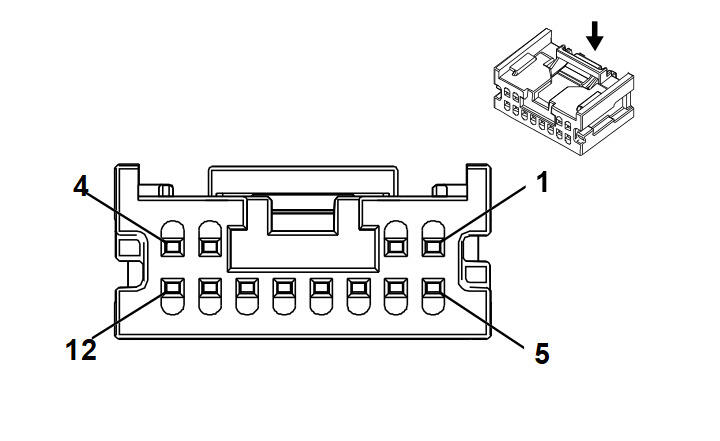

Connector Part Information Harness Type: Headliner OEM Connector: 13507121 Service Connector: 13507121 Description: 12-Way F Mini 50 Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19333221	EL-35616-58 (BK)	EL-38125-58

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	BK / WH	1351	Signal Ground	I	-
2	-	-	-	Not Occupied	-	-
3	0.35	RD / BN	4940	Battery Positive Voltage	I	-
4	0.35	WH	3152	Lane Departure Warning Indicator Control	I	UEU-UGN
5	0.35 0.35	BU / VT BU	3813 2500	High Speed GMLAN Serial Data [+] 4 High Speed GMLAN Serial Data [+] 1	I I	UEU+UGN UEU-UGN
6	0.35 0.35	WH WH	3811 2501	High Speed GMLAN Serial Data [-] 4 High Speed GMLAN Serial Data [-] 1	I I	UEU+UGN UEU-UGN
7	0.35 0.35	BU / VT BU	3813 2500	High Speed GMLAN Serial Data [+] 4 High Speed GMLAN Serial Data [+] 1	I I	UEU+UGN UEU-UGN
8	0.35 0.35	WH WH	3811 2501	High Speed GMLAN Serial Data [-] 4 High Speed GMLAN Serial Data [-] 1	I I	UEU+UGN UEU-UGN
9	0.35 0.35	GY / VT WH / BU	3808 5986	Front Object Sensor 2 Reference Voltage Serial Data Communication Enable	I I	UEU+UGN UEU-UGN
10	0.35	GY / WH	3153	Lane Departure Warning Disable Switch Signal	I	UEU-UGN
11	0.35	GN	5060	Low Speed GMLAN Serial Data	I	-
12	-	-	-	Not Occupied	-	-
