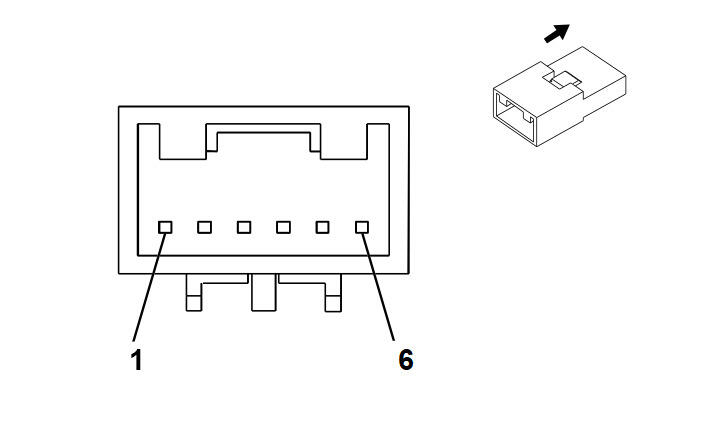

B160 Windshield Temperature and Inside Moisture Sensor
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 19153436
- Service Connector: 19299681
- Description: 6-Way M 0.64 Kaizen Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-65B (LT BU) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE / RD |
597 |
5V Reference |
I |
- |
| 2 |
0.35 |
GY / BU |
7564 |
Humidity Sensor Signal 2 |
I |
- |
| 3 |
0.35 |
BK / BU |
7566 |
Windshield Temperature and Inside Moisture Sensor Low Reference |
I |
- |
| 4 |
0.35 |
GY / GN |
7565 |
Windshield Temperature Sensor Signal |
I |
- |
| 5 |
0.35 |
YE / BU |
3197 |
Intake Air Humidity and Temperature Sensor Signal |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
