B52F Heated Oxygen Sensor - Bank 2 Sensor 2
 Courtesy of GENERAL MOTORS COMPANY
|

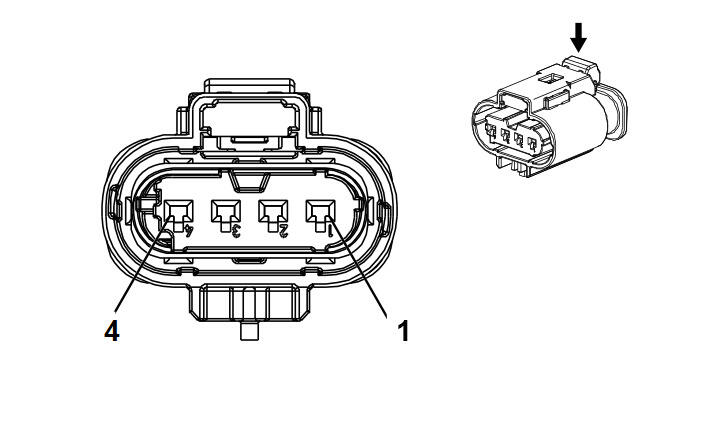

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13576824
- Service Connector: 19330920
- Description: 4-Way F 1.2 Multilock Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (LT GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH / BN |
3223 |
HO2S Heater Low Control Bank 2 Sensor 2 |
I |
- |
| 2 |
0.5 |
VT / BU |
5294 |
Powertrain Main Relay Fused Supply Voltage 5 |
I |
- |
| 3 |
0.5 |
YE / BU |
3221 |
HO2S Low Signal Bank 2 Sensor 2 |
I |
- |
| 4 |
0.5 |
VT / GN |
3220 |
HO2S High Signal Bank 2 Sensor 2 |
I |
- |
