B23C Camshaft Position Sensor - Bank 2 Exhaust
 Courtesy of GENERAL MOTORS COMPANY
|

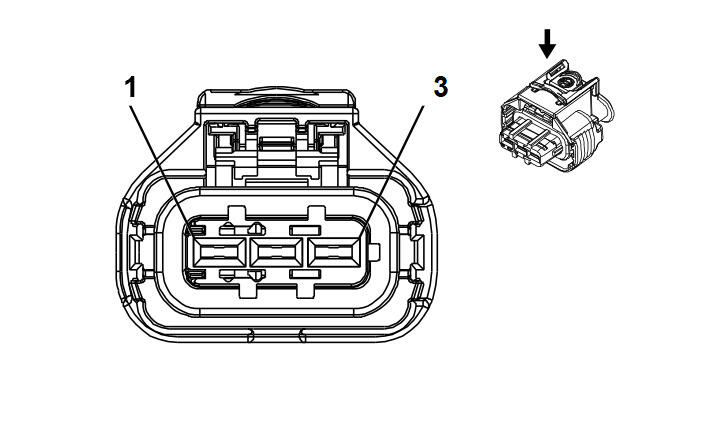

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13343436
- Service Connector: 13384372
- Description: 3-Way F 2.8 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-35 (VT) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK / BN |
5299 |
Exhaust Camshaft Position Sensor Low Reference 2 |
I |
- |
| 2 |
0.5 |
VT / BU |
5274 |
Exhaust Camshaft Position Sensor 2 |
I |
- |
| 3 |
0.5 |
GN / BN |
5298 |
Exhaust Camshaft Position Sensor 2 Voltage Reference |
I |
- |
