Liftgate Adjustment

Procedure

1. Loosen the four liftgate hinge bolts to adjust the liftgate.

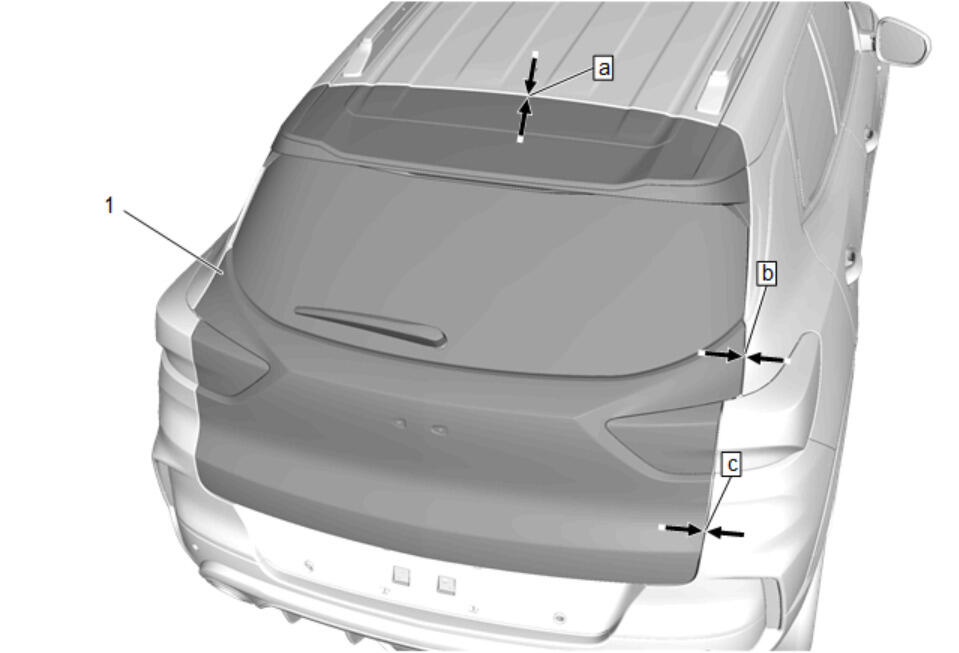

2. Adjust the liftgate in order to obtain an even gap between the liftgate and the roof, the quarter applique and the rear bumper fascia.

Adjustment:

• Rear end spoiler to roof (a) : 5.5 mm ± 1.5 mm (0.21 in ± 0.06 in)
• Liftgate to body side outer (b) : 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in)
• Liftgate to rear bumper fascia (c) : 4.0 mm ± 1.5 mm (0.16 in ± 0.06 in)
