Liftgate Strut Replacement (Manual)

Courtesy of GENERAL MOTORS COMPANY

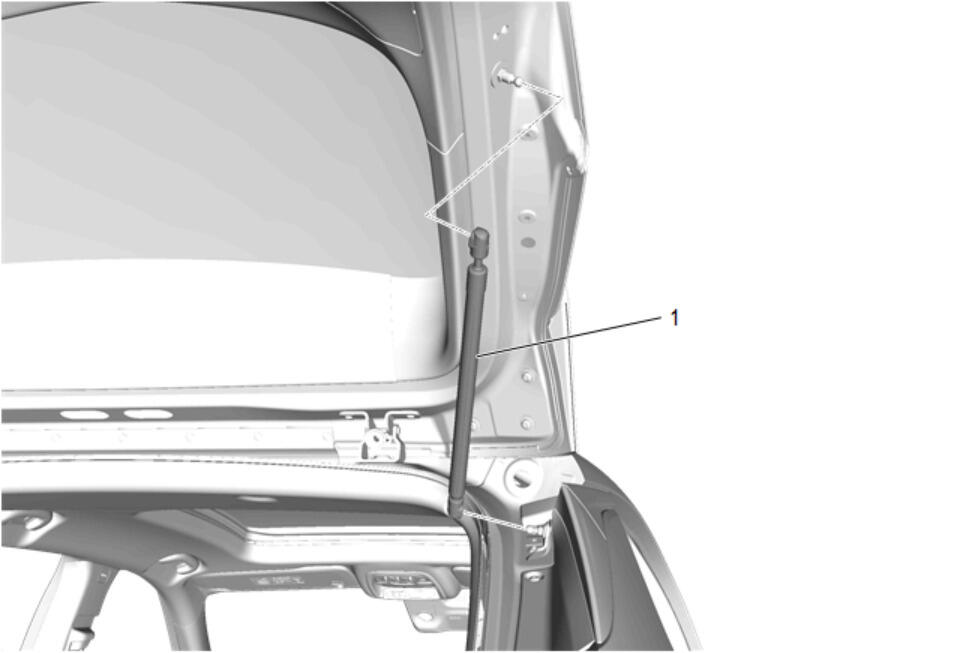

Callout	Component Name
1	Liftgate Strut WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. WARNING: When a liftgate hydraulic system component is removed, installed or disconnected, provide alternate support to avoid the possibility of damage to the vehicle, liftgate hydraulic system, or personal injury. CAUTION: DO NOT exceed the limit of the liftgate power assist actuator ball socket joint's free motion during installation to prevent possibility of damage to the actuator. Procedure Release the locking tabs on the strut. Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed.

Callout

Component Name

Liftgate Strut

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

WARNING:

When a liftgate hydraulic system component is removed, installed or disconnected, provide alternate support to avoid the possibility of damage to the vehicle, liftgate hydraulic system, or personal injury.

CAUTION:

DO NOT exceed the limit of the liftgate power assist actuator ball socket joint's free motion during installation to prevent possibility of damage to the actuator.

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seated when the strut is reinstalled. If the clip cannot be fully seated, a new strut should be installed.
