Front Fender Insulator Replacement

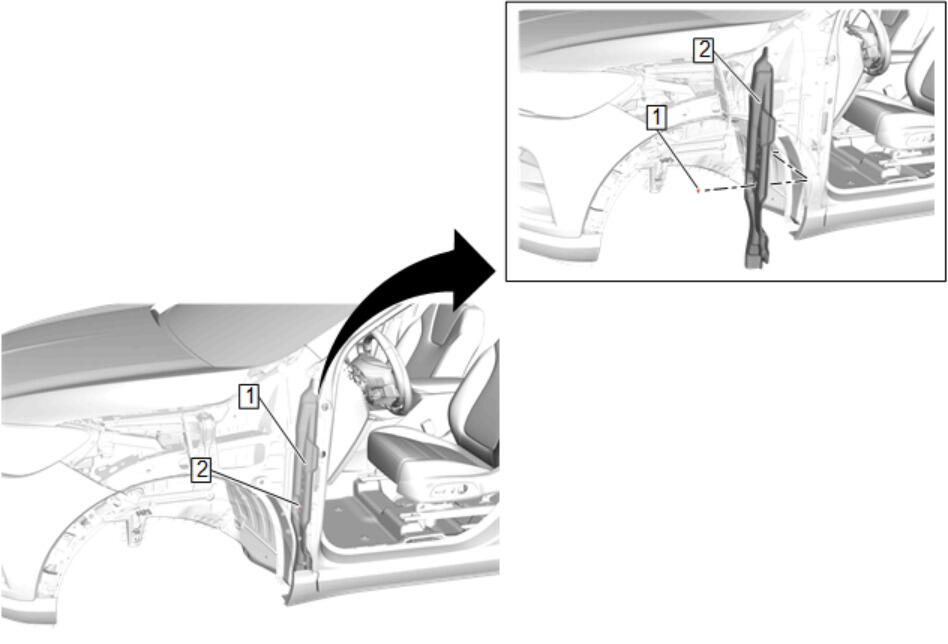

GM5245708Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Reposition the front tire and wheel assembly.
  2. Remove and reposition the front wheelhouse liner only enough to access the front fender insulator. Front Wheelhouse Liner Replacement
1 Front Fender Insulator Retainer
2 Front Fender Insulator

Procedure

  1. If equipped, disconnect the front side turn signal lamp connector.
  2. Grasp the front fender insulator and pull out and down from the rear of the fender.
