Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual shift detent lever shaft assembly. Manual Shift Detent Lever Shaft Replacement

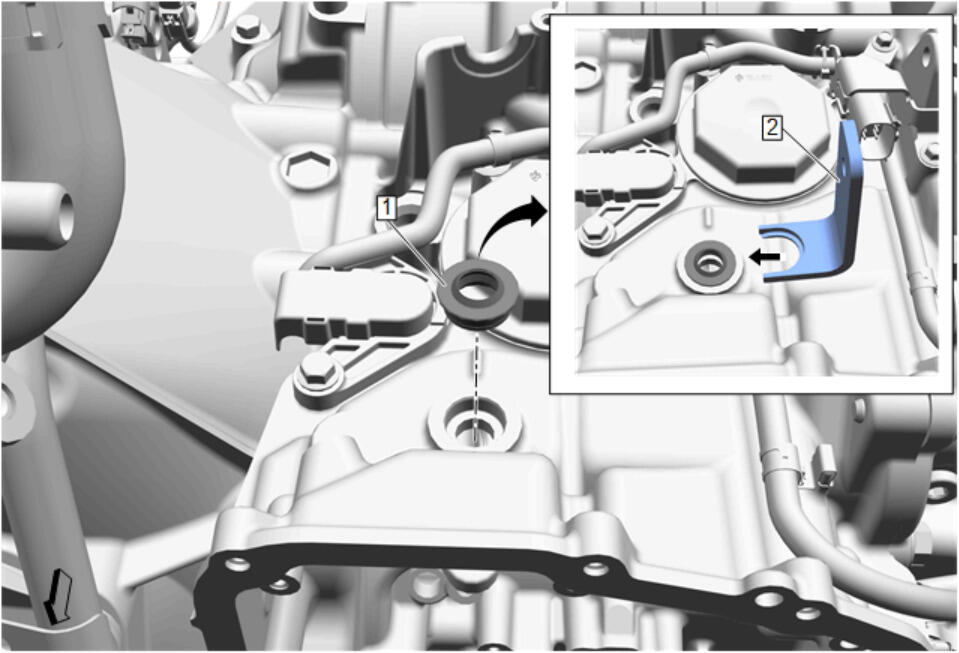

  2. GM5226753Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not damage the case bore during removal of the manual shift shaft seal.

    Remove and DISCARD the manual shift shaft seal (1) using DT-52322  Seal Remover (2).
