Installation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal during installation.

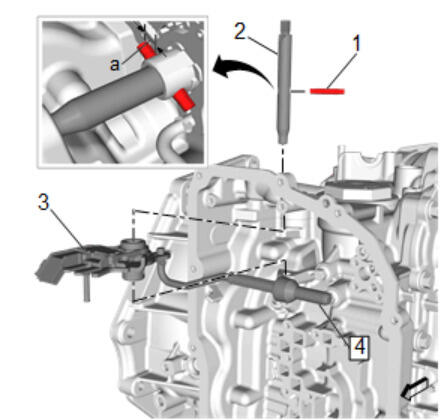

Manual Shift Detent Lever Shaft (2) - Install
Install the NEW manual shaft detent lever hub pin (1) to height of 7.9 mm (0.31 in) (a).
Courtesy of GENERAL MOTORS COMPANY

Manual Shift Detent Lever Spring (2) @ Manual Shift Detent Lever - Install

CAUTION:
Fastener Caution

Manual Shift Detent Spring Bolt (1) - Install NEW and tighten 9 N.m (80 lb in)
Control Valve Body - Install - Control Valve Body Replacement
Range Selector Lever Cable Lever - Install - Automatic Transmission Range Selector Lever Cable Lever Replacement
