Front Wheel Drive Shaft Seal Replacement - Left Side
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
Preliminary Procedure
Front Wheel Drive Half Shaft Replacement - Left Side |
| 1 |

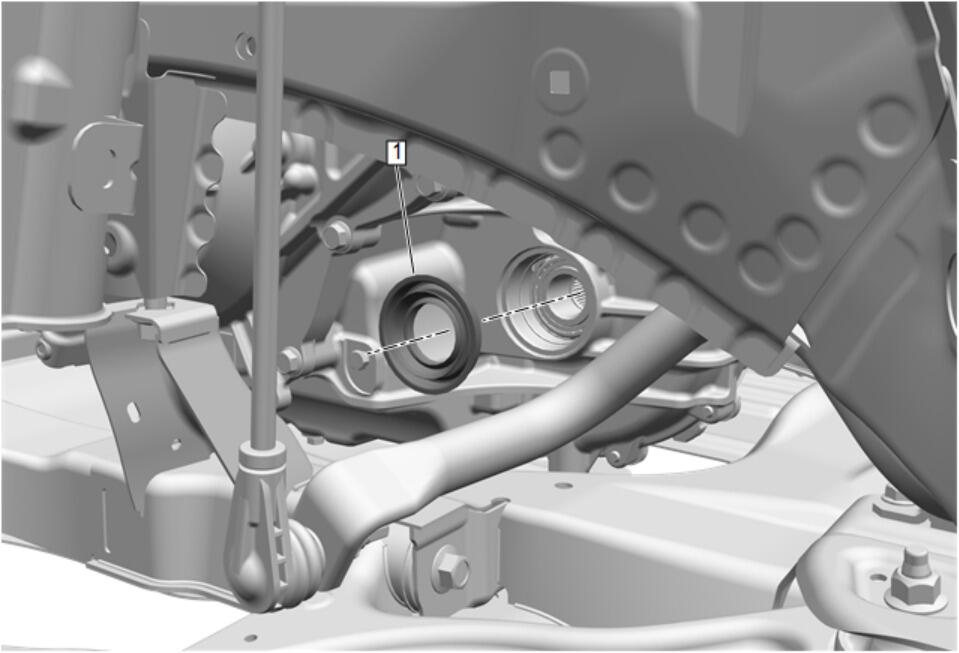

Front Wheel Drive Shaft Oil Seal Procedure
- For seal removal use GE-6125-1B
slide hammer with DT-23129
universal seal remover.
- For seal installation use J-22828
tube driver with DT-50896
front wheel drive shaft oil seal installer.
Special Tools
- DT-23129
Universal seal Remover
- DT-50896
Front Wheel Drive Shaft Oil Seal Installer
- GE-6125-1B
Slide Hammer
- J-22828
Tube Driver
Equivalent regional tools: Special Tools |
