Automatic Transmission Wiring Harness Bracket Replacement (L3T)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

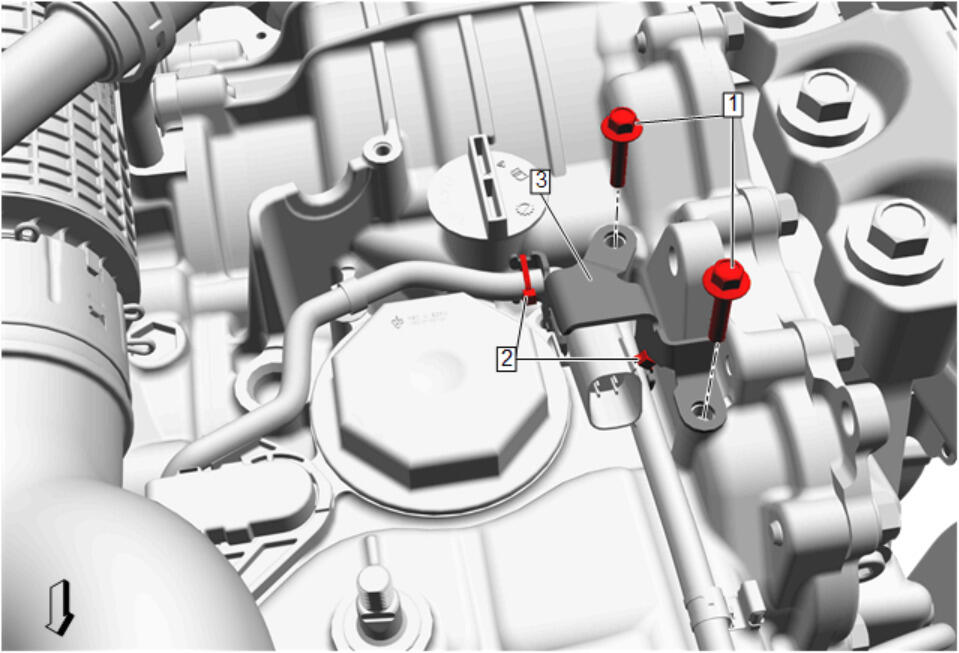

Callout	Component Name
Preliminary Procedures Battery Tray Replacement Engine Mount Brace Replacement (RH) , or Engine Mount Brace Replacement (LH, FWD) , or Engine Mount Brace Replacement (Rear)
1	Transmission Wiring Harness Bracket Bolt [2x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Wire Tie Strap Procedure Remove and DISCARD the 2 wire tie straps from the bracket. Replace with NEW wire tie straps.
3	Transmission Wiring Harness Bracket
