Automatic Transmission Control Indicator Replacement

WARNING: This page is about a different variant/trim than selected.

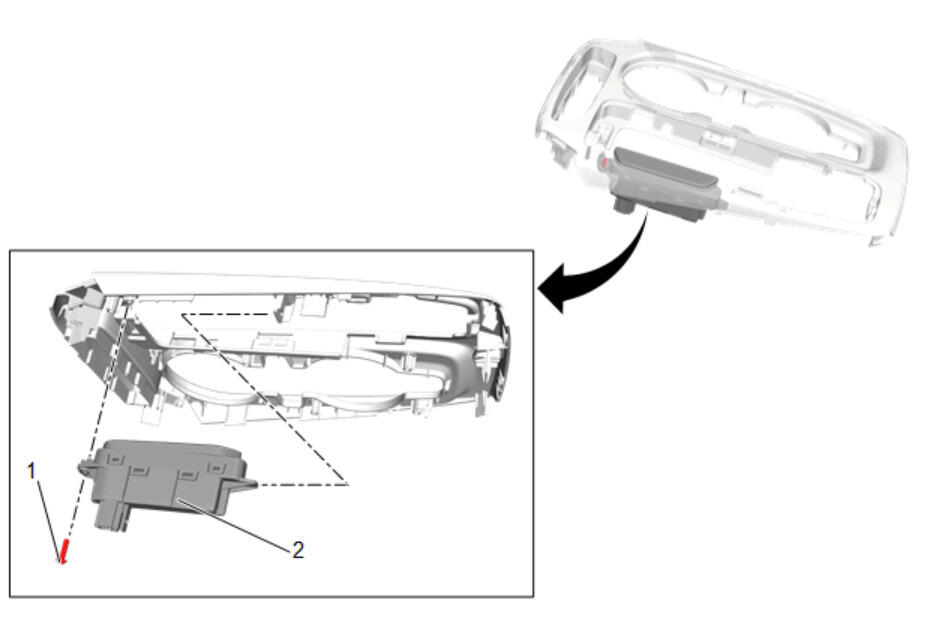

GM5324490Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Cup Holder Trim Plate Replacement
1 Automatic Transmission Control Indicator Housing Bolt
CAUTION:

Fastener Caution


Tighten
1.2 N.m (11 lb in)
2 Automatic Transmission Control Indicator
