Throttle Inlet Absolute Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

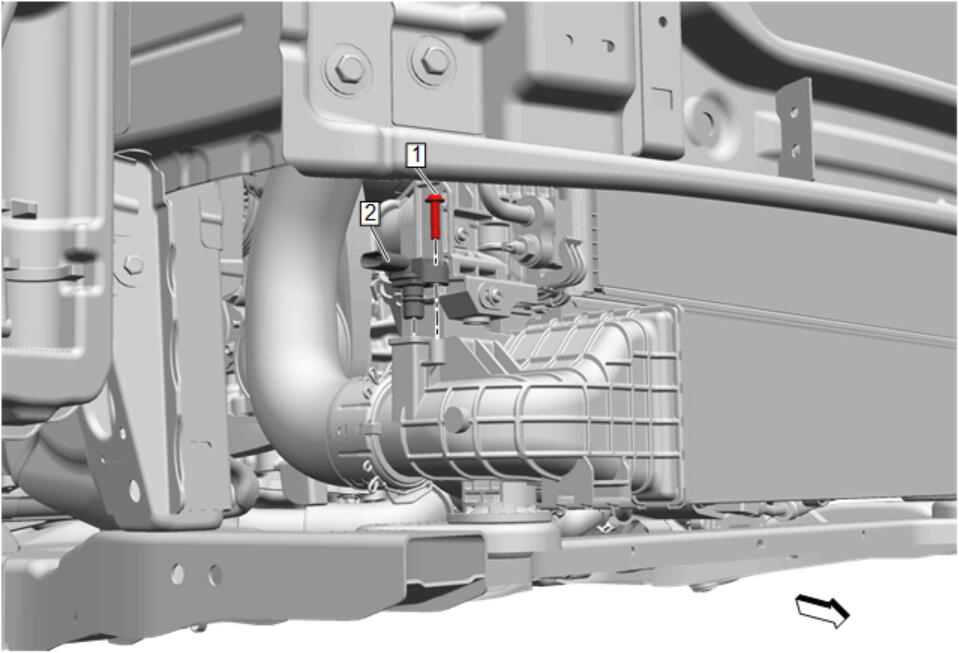

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Throttle Inlet Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Throttle Inlet Absolute Pressure Sensor Procedure Disconnect the electrical connector. Reset the intake system learned values. Intake System Learned Values Reset

Callout

Component Name

Throttle Inlet Absolute Pressure Sensor Bolt

CAUTION:

Tighten
3 N.m (27 lb in)

Throttle Inlet Absolute Pressure Sensor

Procedure
