Section 5 (Engine Controls And Fuel - 1.0L (L4B L4F L4G LIJ) Or 1.2L (L4H L4K LIF LIH) - Repair Instructions)
>>
Repair Instructions
>>
Intake Air Baffle Replacement
Intake Air Baffle Replacement
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Intake Air Duct Replacement
Hood Secondary Latch Release Cable Replacement

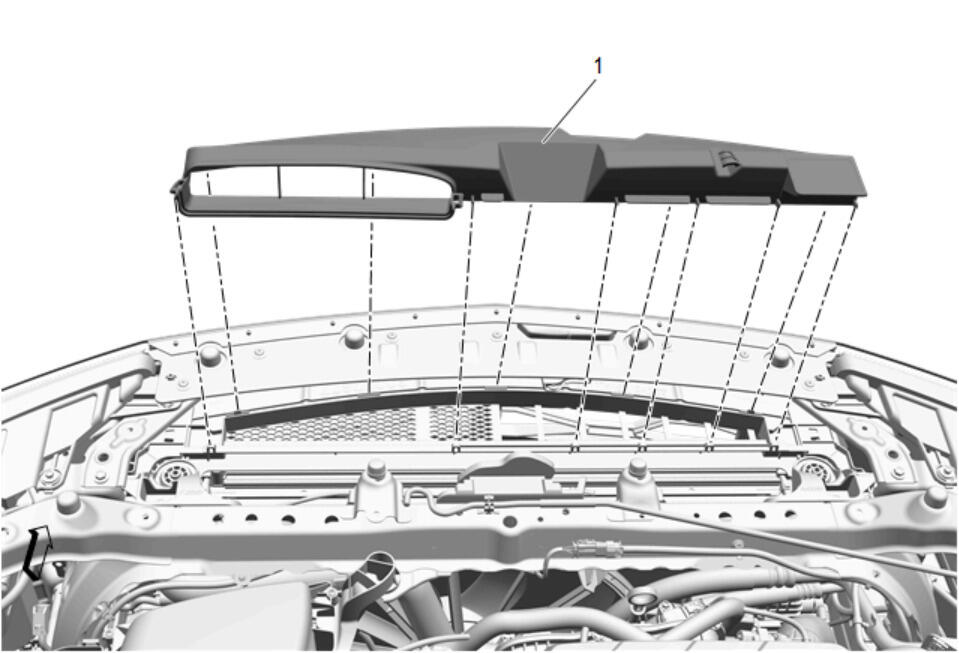

1
Intake Air Baffle
Procedure
Release the retainer tabs and remove the intake air baffle from the radiator air upper baffle.
