Fuel Feed Pipe Replacement (Fuel Tank Side)

WARNING: This page is about a different variant/trim than selected.

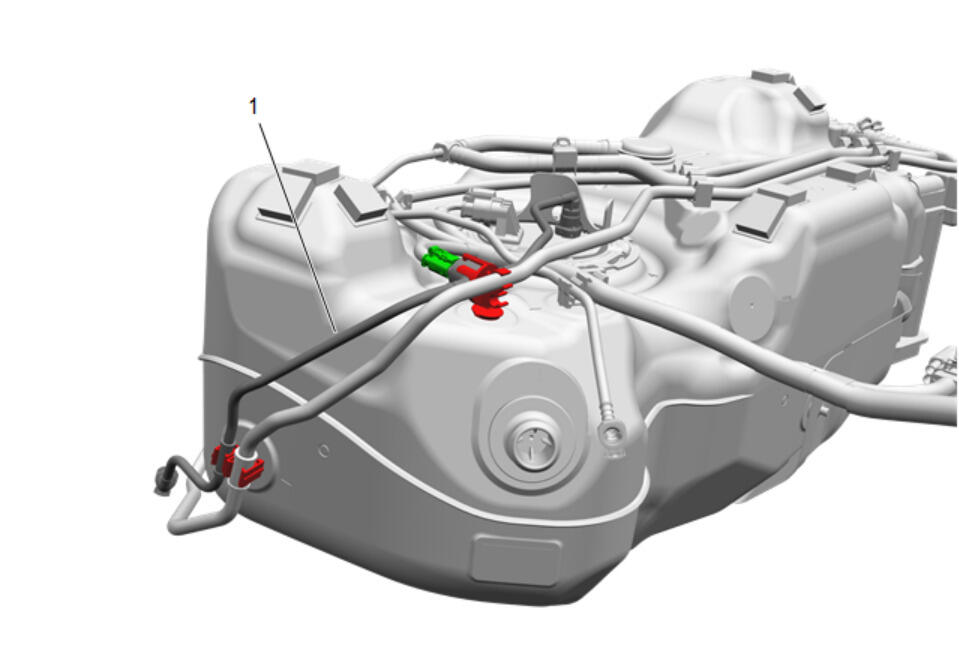

GM5278864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement
1 Fuel Feed Pipe

Procedure

  1. Disconnect the electrical connector.
  2. Disconnect the quick connect fitting. Plastic Collar Quick Connect Fitting Service
  3. Release the retaining tabs.
